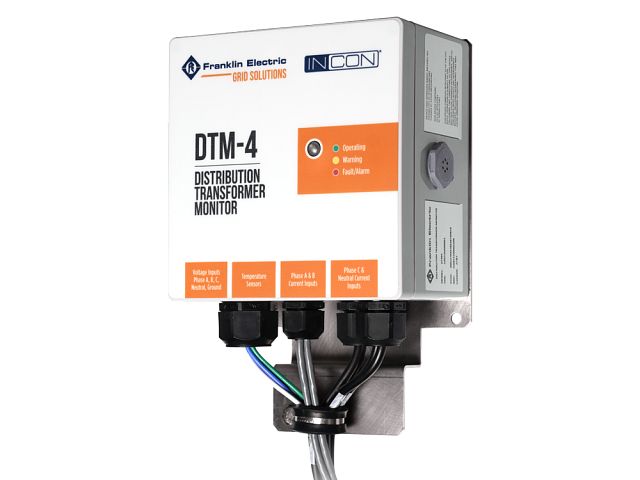

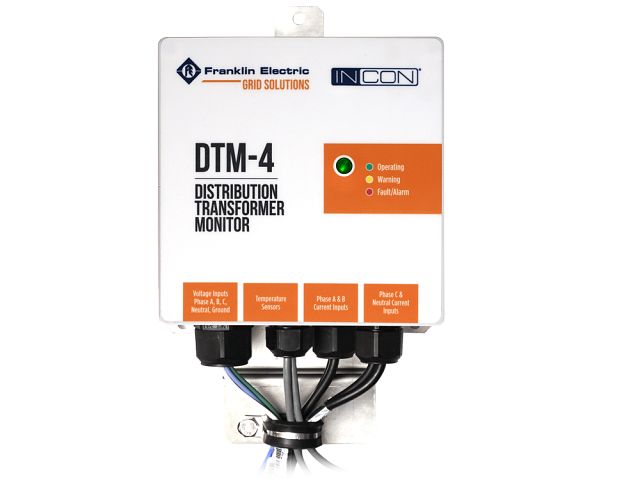

Franklin Electric INCON DTM-4 Distribution Transformer Monitor

The INCON® Distribution Transformer Monitor (DTM) provides continuous, meter-grade precision performance monitoring of high-value, mission critical, low voltage pad mount and conventional pole mount transformers.

DATA-DRIVEN DECISION MAKING

With the ability to monitor and trend transformer output voltage, loading (current) by phase, temperature, and Power Factor for an entire network of transformers, utilities are armed with powerful information regarding power distribution and equipment maintenance.

TRANSFORMER STATE-OF-HEALTH

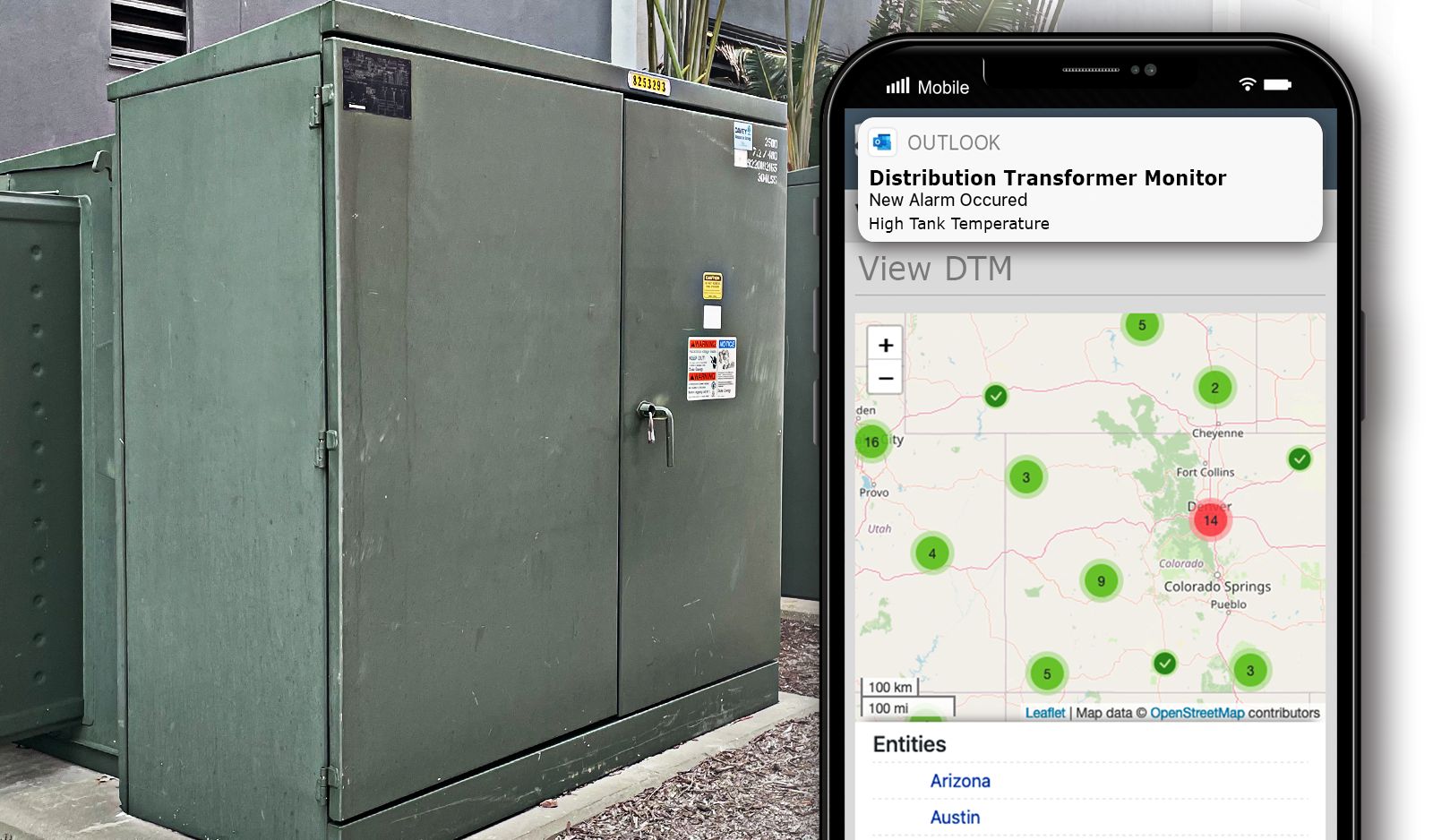

By continuously monitoring the key indicators of a transformer’s performance, including temperature and load, the DTM provides remote access to real-time transformer health data and automated threshold alarms for condition-based maintenance planning.

TRANSFORMER LIFE PREDICTION
The DTM not only tracks the loss of life in a transformer but also employs advanced predictive algorithms to forecast the estimated remaining run time. The DTM ensures a near-constant assessment of the transformer’s health, considering real-time conditions and applying a calculated dynamic acceleration factor to predict the cumulative loss of life accurately.

POWER FACTOR MONITORING
The DTM provides a transformer’s Power Factor, which is a trend of useful power delivered. Power Factor helps utilities to determine the most efficient distribution of power during peak times and to ensure the delivery of high-quality outbound power when their customers need it the most.

HIGH PERFORMANCE HARDWARE
A powerful industrial IOT grade processor and sophisticated polyphase energy measurement integrated circuit provide superior on-board computation capability and Power Quality Monitor level fidelity.

DEPLOY ANYWHERE AT SCALE
A built-in Cat M1/NB2 cellular modem allows the DTM to communicate via a cellular network, enabling utilities to deploy DTMs virtually anywhere and at scale (i.e. one unit to thousands of units).
